Dry Shipper Warming and Drying Rack

The Dry Shipper Warming and Drying Rack is available in two configurations: a two-unit version designed to hold up to two dry shippers and a four-unit version designed to hold up to four dry shippers. If you need a different capacity, use the contact form under the right-hand tab to inquire about other capacities.

Learn More

The Dry Shipper Warming and Drying Rack is an essential tool for maintaining the efficiency and longevity of your dry shippers. Dry shippers, such as the CX100, are used to transport temperature-sensitive biological samples at cryogenic temperatures. Over time and repeated use, ice can accumulate within the dry shipper. This occurs from moisture entering the dry shipper. When this ice melts, the resulting water can become trapped in the adsorbent material, which is critical for absorbing liquid nitrogen and maintaining the shipper's temperature. Trapped water reduces the shipper's holding time and can compromise the integrity of your samples. The Dry Shipper Warming and Drying Rack addresses this issue by providing a stable and convenient platform to warm and dry your dry shippers, ensuring optimal performance.

We recommend using the Dry Shipper Warming and Drying Rack with our Dry Shipper Air Dryer to efficiently remove residual water from your dry shipper after warming to ensure optimal performance.

Features and Benefits

• Available in Multiple Capacities: The Dry Shipper Warming and Drying Rack is available in configurations to hold 2 or 4 dry shippers. If you need a different capacity, use the contact form under the right-hand tab to inquire about other capacities.

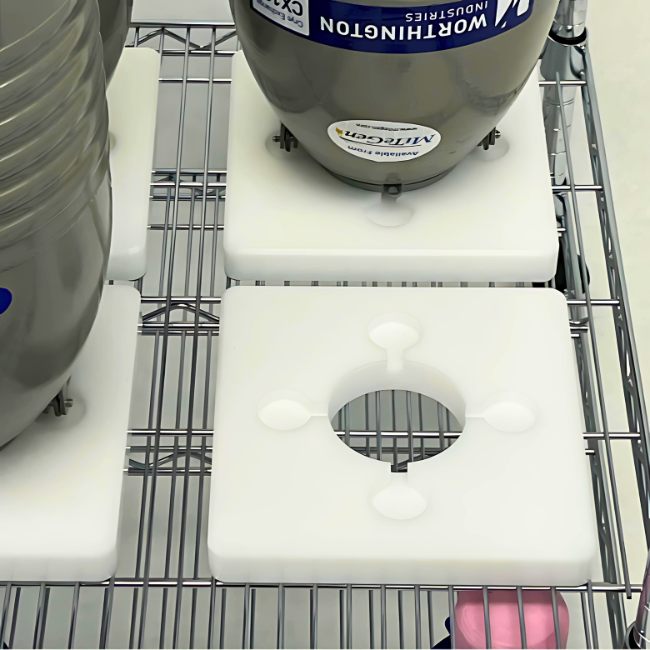

• Adaptable Holder Design: The dewar holder is designed to accommodate dry shippers with a specific circumference, such as the CX100. Alternative dry shipper holders are available and can be customized to fit other brands and models of dry shippers. Use the contact form under the right-hand tab to contact us for details.
• Designed for mobility but can be made stationary: the Dry Shipper Warming and Drying Rack has four wheels. The wheels provide mobility and can be locked as needed, but the rack can also be used without wheels if that is your preference.
• Assembly: Shipped disassembled for convenience; easy to assemble with included instructions.
• Construction: Made of stainless steel for durability and easy cleaning.
• Drying Efficiency: The rack's design promotes efficient warming and drying, minimizing ice buildup and facilitating the removal of trapped water.
• Optional Dry Shipper Air Dryer: For accelerated drying after warming, consider our optional Dry Shipper Air Dryer. This tool gently circulates air within the dry shipper to expedite the evaporation of any residual moisture.

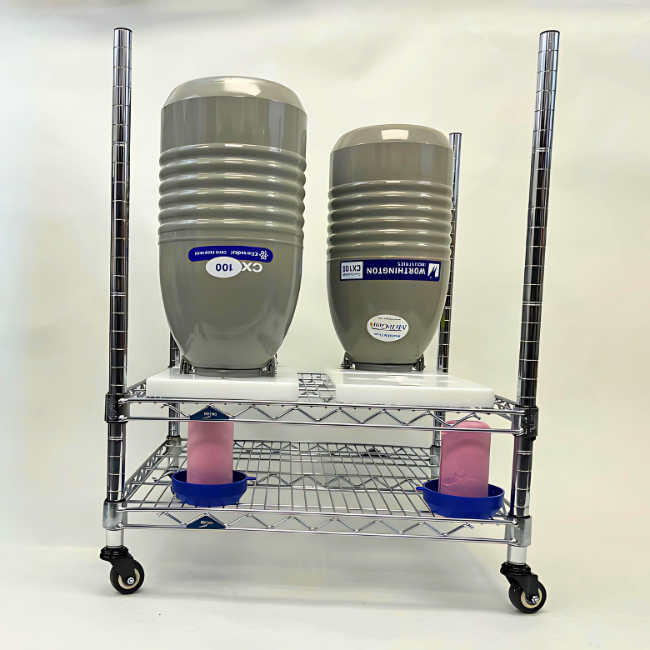

• Integrated Lower Storage Rack: The base of the rack includes a convenient storage area for the dry shipper's neck tube core and other items, keeping all components organized and readily accessible.

Specifications (approximate):

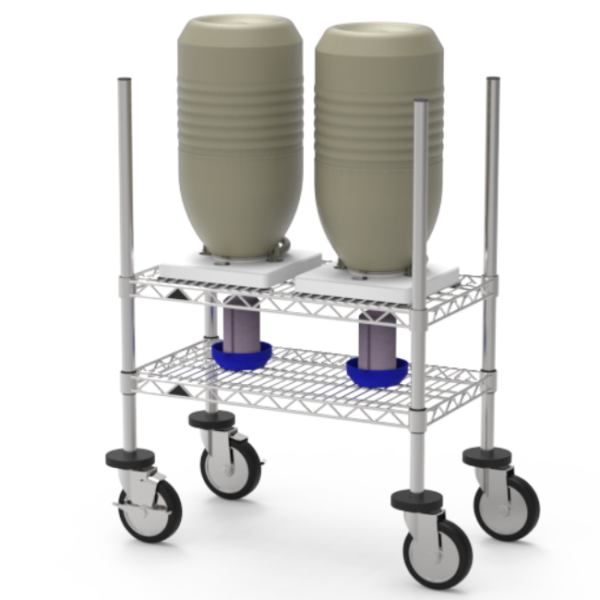

• 2 Unit Version
  • Dimensions: 12" x 24" x 25"
  • Weight: 25 lbs.

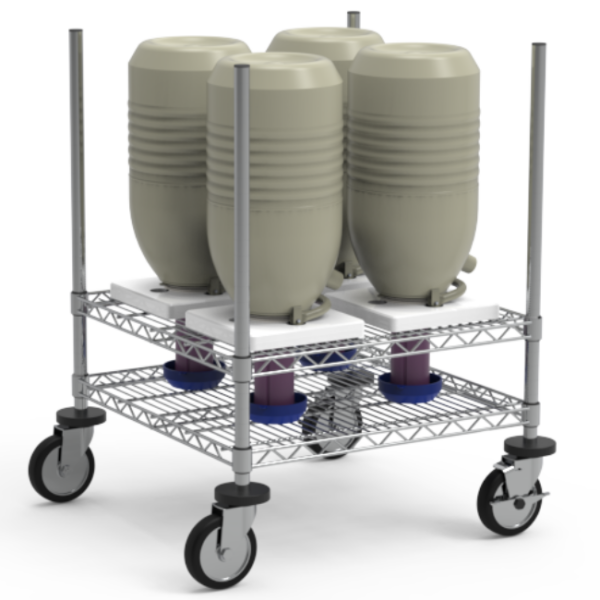

• 4 Unit Version
  • Dimensions: 24" x 24" x 35"
  • Weight: 40 lbs.

Protocol for Use

1. Ensure the dry shipper is empty of all liquid nitrogen.
2. Carefully place the dry shipper onto the warming and drying rack.
3. Allow the dry shipper to warm for the appropriate duration.
4. If using the optional Dry Shipper Air Dryer, position it to direct airflow into the dry shipper after warming is complete.
5. Once the drying process is complete, carefully remove the dry shipper from the rack.

Applications:

This Dry Shipper Warming and Drying Rack is a versatile tool for laboratories utilizing cryogenically preserved samples across various disciplines, including:

• Structural Biology: Facilitates controlled warming for crystallography and cryo-electron microscopy (cryo-EM) sample preparation.
• Cryo-biology: Provides a stable platform for the secure handling and thawing of sensitive biological specimens.
• In Vitro Research (IVR): Aids in the organized and controlled thawing of cryopreserved components.
• Cell Biology and Tissue Culture: Offers a convenient space for warming cryopreserved cell lines and tissues for experiments.
• Pharmaceutical Research: Supports the handling of cryogenically stored biological samples and reagents in drug discovery.
• Biotechnology: Useful in workflows involving cryopreserved biological materials in various biotech applications.
• Clinical Research and Biobanking: Provides a controlled environment for preparing cryopreserved patient samples for analysis.
• Agriculture and Veterinary Science: Assists in the thawing of cryopreserved animal semen, embryos, and plant genetic material.
