Mount Selection Guide

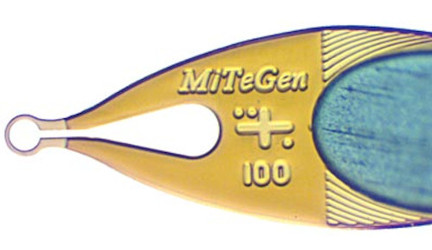

Dual-Thickness MicroMounts™ General purpose mount with wicking aperture; for low background X-ray scatter from medium to small crystals. Available in 10,20,30,50, 75, 100, 150, and 200 μm aperture sizes

Dual-Thickness MicroLoops LD™
General purpose mount with long narrow neck for low drop disturbance during harvesting of medium to small crystals from small drops. Available in 20,35,50, 75, 100, 150, 200, and 300 μm aperture sizes

Dual-Thickness MicroLoops™
General purpose, robust, sample mounts for medium to large crystals. Available in 50, 75, 100, 150, 200, 300, 400, 500, 600, 800 and 1000 μm aperture sizes

MicroLoops E™
Special purpose elliptical apertures for rod and needle shaped crystals. Small fingers span the aperture to provide delicate crystals with gentle support.

Dual-Thickness MicroCrystal Mounts™
Special purpose Ultra-thin membrane for easier visualization and ultra-low background X-ray scatter, for use with very small crystals.. Available in a variety of aperture styles

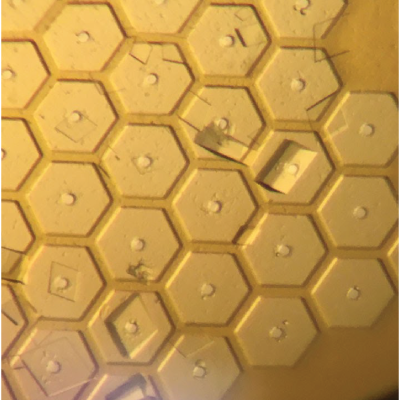

Special purpose mesh apertures for mounting multiple small crystals for serial crystallography. Also great for delicate plate and rod crystals. Available in a variety of aperture styles

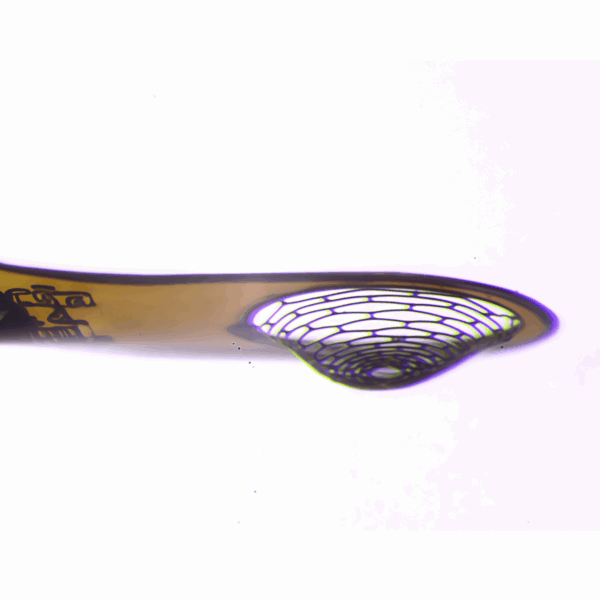

Special purpose, gentle support for thin plate-like samples and gripping action for robust samples.. Available in a variety of aperture styles

UV-Vis Mounts™
Ultra Clear UV Transparent thin film mounts for crystallography and spectroscopy. Available in 3 aperture styles.
