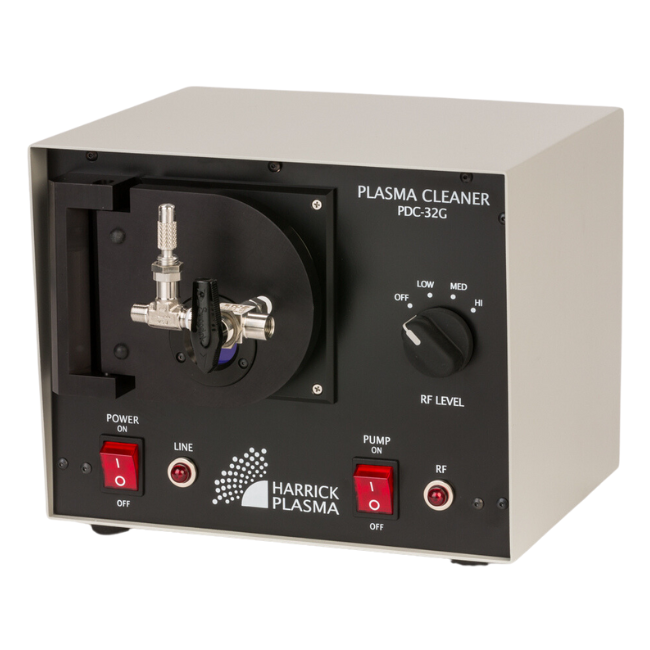

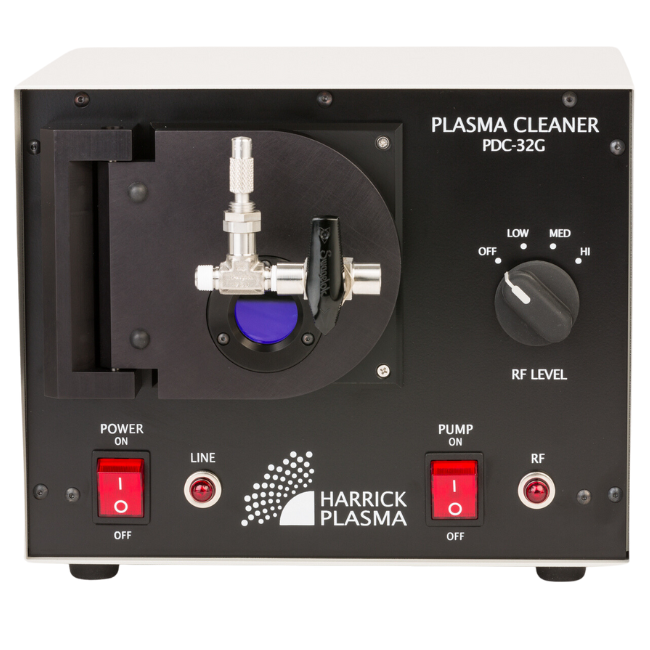

Glow Discharge Plasma Cleaner

The Glow Discharge Plasma Cleaner is a compact, inexpensive tabletop plasma instrument with a hinged door, viewing window, and fine control metering valve, suitable for nanoscale surface cleaning and activation of small samples.

Learn More – Ask Question – Request Quote
SKU: M-PDC-32G Categories: , ,

Product Information

  • Compact, tabletop unit
  • Adjustable RF power settings (Low, Medium, High)
  • Maximum RF power of 18W
  • Includes a 3″ diameter x 6.5″ length Pyrex chamber
  • Hinged door with viewing window
  • Active fan cooling
  • Integral switch for a vacuum pump
  • 1/8″ NPT metering valve to qualitatively control gas flow and chamber pressure
  • 1/8″ NPT 3-way valve to quickly switch from introducing gas, venting, and isolating the chamber
  • Weight: 13 lbs
  • Size: 8.5″ H x 10″ W x 8″ D
  • The Glow Discharge Plasma Cleaner requires a vacuum pump with a minimum pump speed of 1.4 m3/hr (23 L/min) and ultimate total pressure of 200 mTorr (0.27 mbar) or less. See the recommended vacuum pump.
