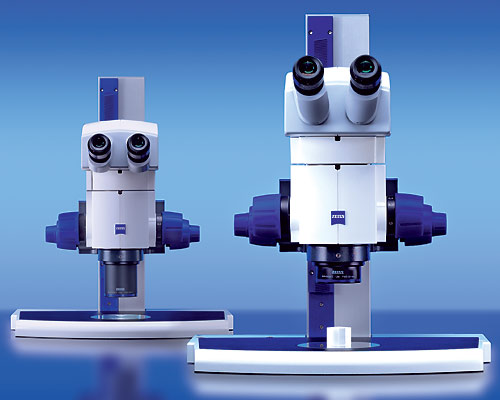

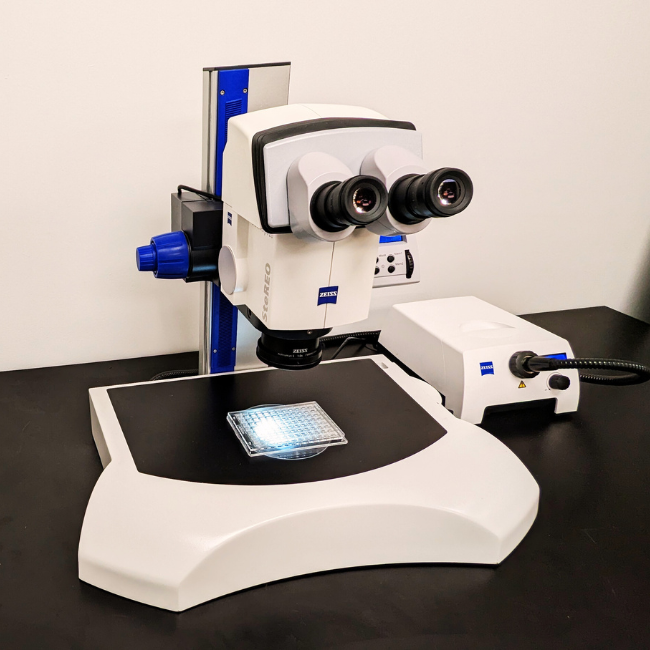

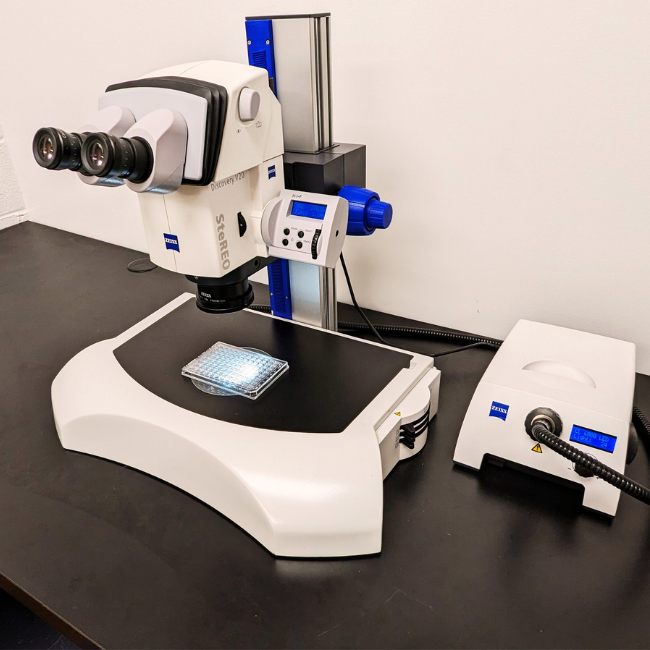

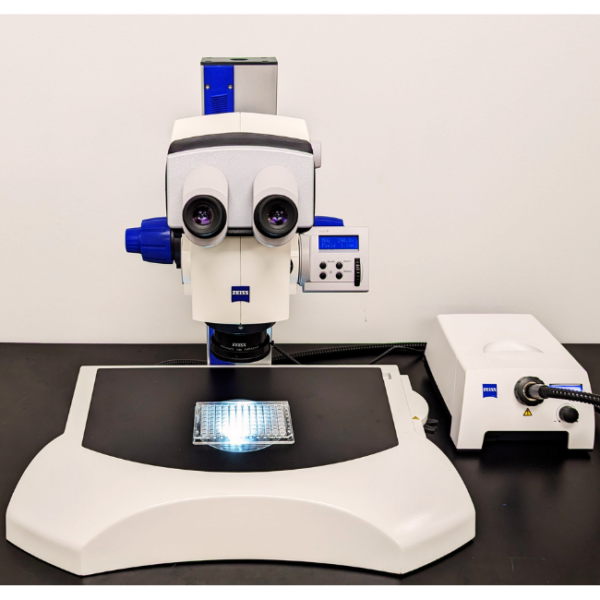

MiTeGen V201 Stereo Microscope Kit

If you are looking for a high-quality stereo microscope for easy crystallization screening and crystal harvesting, the ZEISS Discovery V20 is one of the best options to consider. It combines all of the most desired features while providing the largest magnification range of all of the systems. High magnification allows for easy visualization of even the smallest drops and crystals

*note: Kits may at times have extended delivery schedules of 2 – 12 weeks

Learn More About The MiTeGen V201 Stereo Microscope Kit


SKU: ZV20-MTGKV201 Category:

Product Information

Here are some specific features of the Discovery V20 that are beneficial for crystallization screening and crystal harvesting:

  • Motorized 20:1 zoom magnification range allows you to easily zoom in on small crystals and droplets for detailed observation
  • Apochromatic objectives provide sharp, clear images with excellent color fidelity, which is important for accurately assessing the quality of crystals
  • Integrated LED illumination provides bright, shadow-free light that minimizes glare and improves image clarity
  • Three-position illumination turret allows you to choose the illumination that best suits your needs, such as brightfield for general observation, oblique for highlighting surface features, or darkfield for revealing internal structures
  • Long working distance of 125 mm makes it easy to handle crystals and droplets without obscuring your view
  • Ergonomic design with easy-to-use controls makes it a pleasure to use, even for extended periods of time
  • Durable construction ensures years of reliable performance, even in demanding laboratory environments

Overall, the ZEISS Discovery V20 is a powerful and versatile stereo microscope that is well-suited for a variety of applications, including crystallization screening and crystal harvesting. It is a good choice for laboratories that require high-quality images and a comfortable viewing experience.


  • ZEISS Stereo Discovery V20 body

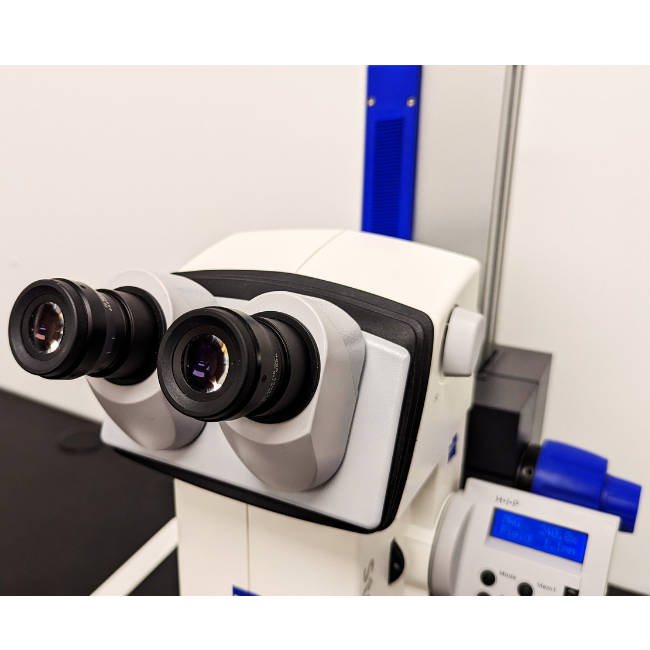

  • Ergonomic adjustable eyepieces
  • A wide array of accessories available
  • 7.5 to 150 x magnification range

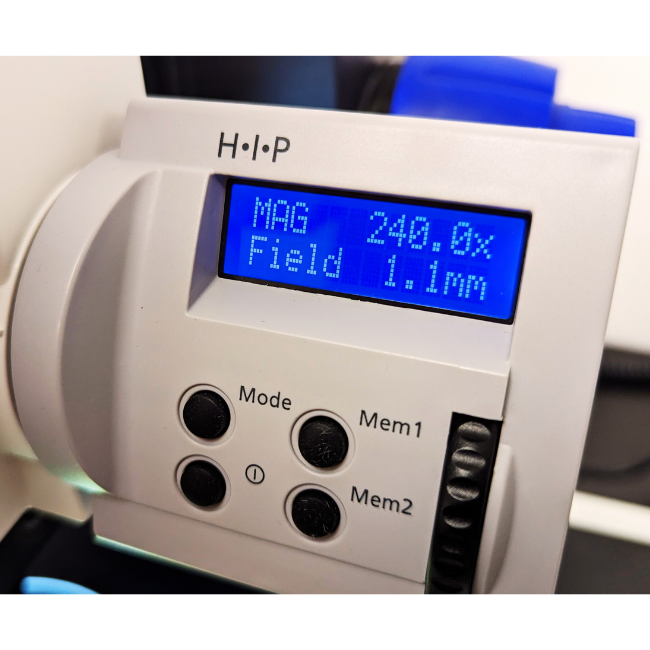

  • Human Interface Panel HIP
  • Dust Protection Set M
  • Binoc Phototube Ergo Stereo 5-45
  • Eyepiece PL 10x/23 Br foc
  • Folding Eyecup
  • Stand base Profile S
  • Transmitted Light Equipment S
  • Cold-light source Zeiss CL6000 LED
  • 6200K color temperature
  • Control of intensity & 6 memory positions
  • Filter slider for 2 filters 35x26x4mm (sold separately)
  • Analyzer S Rotatable
  • Polarizer D =84mm
  • Manual focus drive f/ Discovery
  • Mount S with 76 mm Diameter Support
  • Achromat S 1.0x Reo WD=63 lens
  • If you intend on using the Axiocam 208 Microscope Camera (sold separately) with this microscope, then you will need to also purchase the Axiocam Camera Adapter (sold separately).
