XTalQuest Crystallization Plates

SKU: XQ-P-24S-B$753.00
SKU: XQ-P-24S-A$753.00
SKU: XQ-P-24H-A$859.00
SKU: XQ-P-24H-B$1,321.00
SKU: XQ-P-48S-A$1,226.00
SKU: XQ-P-96S-A$1,226.00
SKU: XQ-P-96S-B$1,100.00
SKU: XQ-P-96S-C$1,100.00
SKU: XQ-P-96H-A$495.00
SKU: XQ-P-96H-B$455.00

Product Information

24 Well "Small" Sitting Drop Crystallization Plate- XQ-P-24S-B The 24 well "small" crystallization plate is used mainly for protein crystal screening by sitting drop vapor diffusion techniques, and for crystallization condition optimization. It has quite large reservoir well and sample container, which favor manual handling and big sized protein crystal growth. In addition, its flat surfaces are easily to be sealed by transparent tape or cover slips

  • Maximum capacity is 1.1ml of the tank and maximum drop volume on post is 30 µl
  • Used for both initial crystallization screening and optimized growth
  • With good optical performance and strong resistance to most chemicals
  • This is for a pack of 100 plates
  • Use with coverslips or wide sealing tape

note: all sitting drop plates from XTalQuest have the growth area coated with a thin layer of silicone oil to improve the hydrophobic properties.

24 Well Small Sitting Crystallization Drop Plate

24 Well "Big" Sitting Drop Crystallization Plate- XQ-P-24S-A The 24 well "big" crystallization plate is used mainly for protein crystal screening by sitting drop vapor diffusion techniques, and for crystallization condition optimization. It has quite large reservoir well and sample container, which favor manual handling and big sized protein crystal growth. In addition, its flat surfaces are easily to be sealed by transparent tape or cover slips

  • Mother liquor cells with a capacity of 1.5 ml each
  • Used for both initial crystallization screening and optimized growth
  • Use with coverslips or wide sealing tape

note: all sitting drop plates from XTalQuest have the growth area coated with a thin layer of silicone oil to improve the hydrophobic properties.

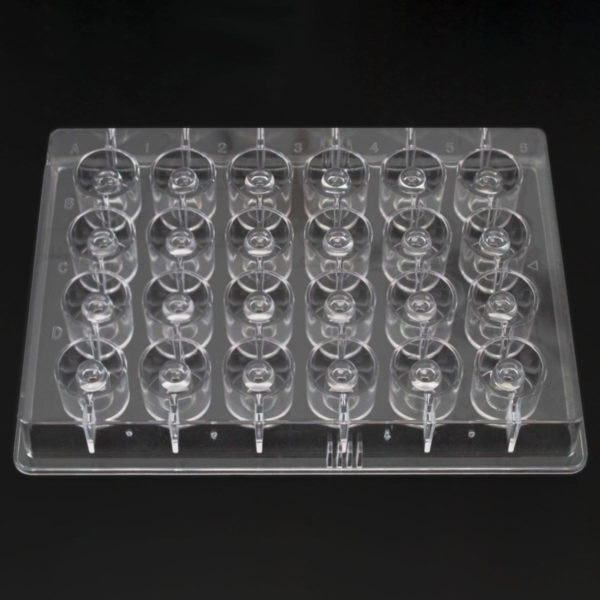

Xtalquest Crystallization Plates 24well Bigwell XQP24SA

24 Well Hanging Drop Crystallization Plate-XQ-P-24H-A The 24 well "big" crystallization plate is used mainly for protein crystal screening by sitting drop vapor diffusion techniques, and for crystallization condition optimization. It has quite large reservoir well and sample container, which favor manual handling and big sized protein crystal growth. In addition, its flat surfaces are easily to be sealed by transparent tape or cover slips

  • Mother liquor cells with a capacity of 100 -1000 ml each
  • Crystallization area for 1-10 µl
  • Used for both initial crystallization screening and optimized growth
  • Use with 22 mm coverslips

24 Well Hanging Drop SBS Crystallization Plate-XQ-P-24H-B The 24 well "big" crystallization plate is used mainly for protein crystal screening by sitting drop vapor diffusion techniques, and for crystallization condition optimization. It has quite large reservoir well and sample container, which favor manual handling and big sized protein crystal growth. In addition, its flat surfaces are easily to be sealed by transparent tape or cover slips

  • Mother liquor cells with a capacity of 100 -1000 ml each
  • Crystallization area for 1-10 µl
  • Used for both initial crystallization screening and optimized growth
  • Use with 18 mm coverslips
24 Well Hanging Drop SBS Crystallization Plate

48 Well Double Sample Sitting Drop Crystallization Plate-XQ-P-48S-A

  • Patented XtalQuestdesign
  • SBS standard footprint
  • Suitable for initial protein crystal condition screening
  • Mother liquor cells with a capacity of 200 ul each
  • Two sample holes with a capacity of 3ul each
  • Use with VIEWseals or wide sealing tape

note: all sitting drop plates from XTalQuest have the growth area coated with a thin layer of silicone oil to improve the hydrophobic properties.

96 Well Flat Stage Sitting Drop SBS Crystallization Plate-XQ-P-96S-A

  • Suitable for initial protein crystal condition screening
  • Mother liquor cells with a capacity of 70 μl each
  • Large sitting drop area for 50 nl to 1 μl
  • Use with VIEWseals or wide sealing tape

note: all sitting drop plates from XTalQuest have the growth area coated with a thin layer of silicone oil to improve the hydrophobic properties.

Xtalquest Crystallization Plates 96well SBS

96 Well 2Drops Sitting Drop Crystallization Plate-XQ-P-96S-B

  • Mother liquor cells with a capacity of 200 μl each
  • Crystallization area with a capacity of 200 nl to 2 μl each
  • Used for both initial crystallization screening and optimized growth
  • Use with VIEWseals or wide sealing tape

note: all sitting drop plates from XTalQuest have the growth area coated with a thin layer of silicone oil to improve the hydrophobic properties.

Xtalquest Crystallization Plates 96 Well 2Drops Sitting Drop.

96 Well 3 Drops Sitting Drop Crystallization Plate-XQ-P-96S-C

  • Mother liquor cells with a capacity of 200 μl each
  • Crystallization with a capacity of 2 μl each
  • Used for both initial crystallization screening and optimized growth
  • Use with VIEWseals or wide sealing tape

note: all sitting drop plates from XTalQuest have the growth area coated with a thin layer of silicone oil to improve the hydrophobic properties.

Xtalquest 96well Crystallization Plate Crystalgrowth XQP96SC

96 Well Hanging Drop Crystallization Plate-XQ-P-96H-A This 96 well plate for hanging drop crystallization method.

  • Mother liquor cells with a capacity of 260 μl each
  • Used for both initial crystallization screening and optimized growth
  • Use with VIEWseals or wide sealing tape
XQP96HA Xalquest Crystallization Plates 96well

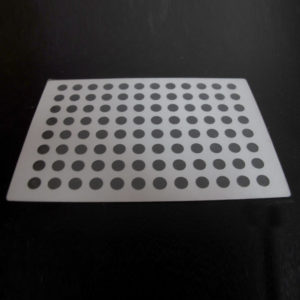

96 Well Hanging Drop Crystallization Sheet-XQ-P-96H-B The 96 well hanging drop crystallization sheet is supplied for high throughput crystallization screening

  • Good optical property and resistance to corrosion
  • Multilayer composite structure ,safe and clean
Crystallization 96well Crystallization sheet Xtalquest XQP96HB.
